PU-304-KIT
Code:
PU-304-KIT
EAN/UPC: 5060067151591
Brand: CYP
€ 199,21 + VAT
Recommended End User Price
- € 199,21 + VAT
- Recommended End User Price
Description:

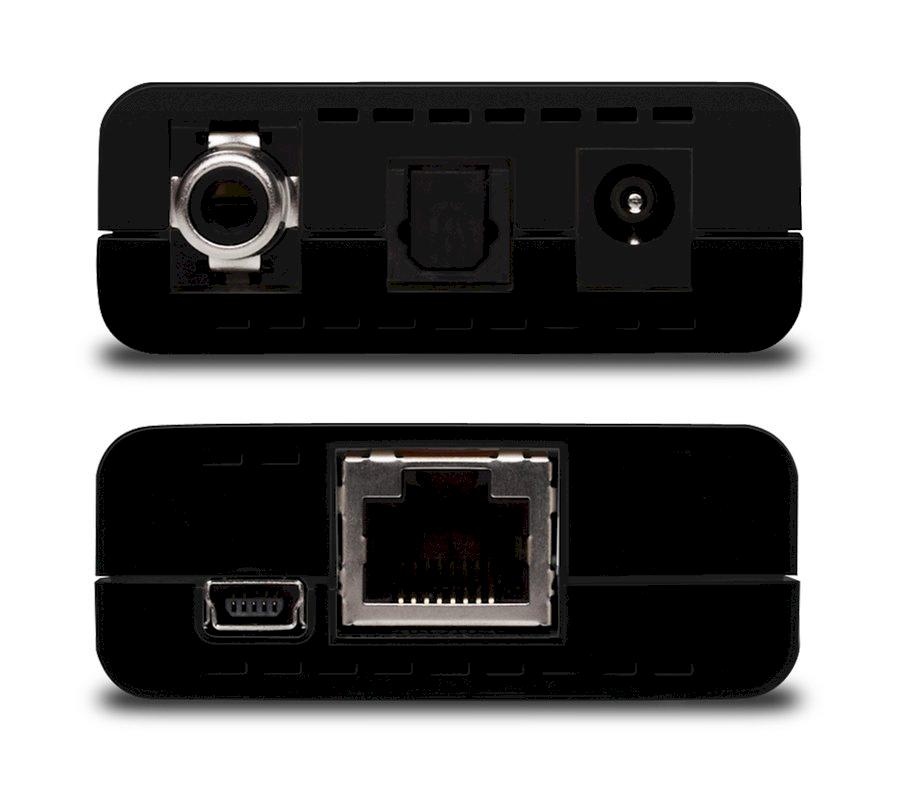

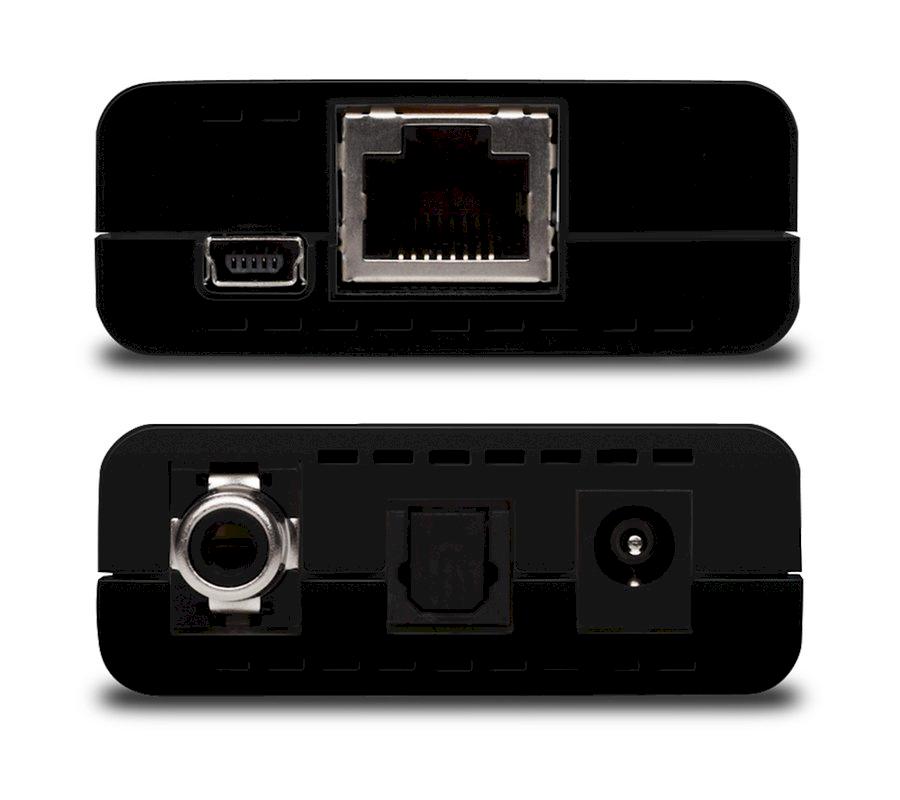

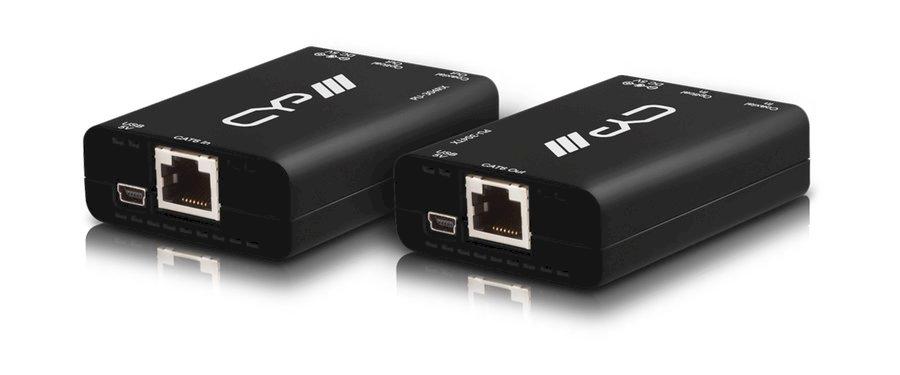

The PU-304-KIT is designed to send digital audio signals over 150m over CAT5e/6 cable infrastructure. This device supports both Coaxial and Optical signals and can transmit these signals up to 150m. The PU-304-KIT can be powered using a USB cable or the supplied PSU adaptor for added flexibility in a compact design. Digital SPDIF signals are supported up to a sample rate of 96Khz, and support for Stereo and Multichannel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus) is also provided.
- DATA SHEET
- DOCUMENTS
Overview
- Tipology:
- Kit
- Product category:
- Signal Distribution
- Family:
- Extender Audio
- Product line:
- CAT
- Cat-Cyp
- Bi-DIRECTIONAL
Features
- Product colour
- Black
- Type
- AV transmitter & receiver
- Cable types supported
- Cat5e, Cat6
- Maximum transfer distance
- 150 m
- LED indicators
- Yes
- Audio formats supported
- LPCM
- Electrostatic Discharge (ESD) protection
- 6 kV
Packaging data
- Package weight
- 380 g
Weight & dimensions
- Receiver dimensions (WxDxH)
- 55 x 85 x 22 mm
- Receiver weight
- 60 g
- Transmitter dimensions (WxDxH)
- 55 x 85 x 22 mm
- Transmitter weight
- 60 g
Ports & interfaces
- Connectivity technology
- Wired
- RJ-45 input ports
- 1
- DC-in jack
- Yes
- RJ-45 output ports
- 1
- Audio input
- 2
- Audio output
- 2
Power
- Operating voltage
- 5 V
- Power consumption (typical)
- 2 W
- Input current
- 1 A
- External power adapter
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 20 - 90%
Packaging content
- AC adapter included
- Yes
- Manual
- Yes
