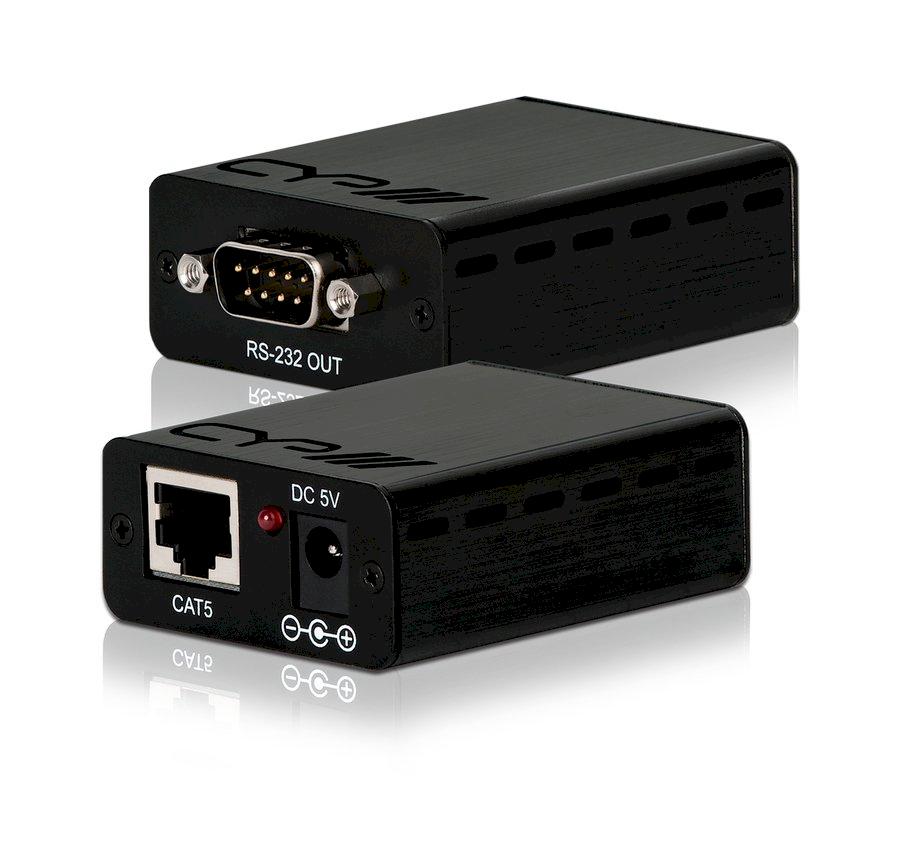

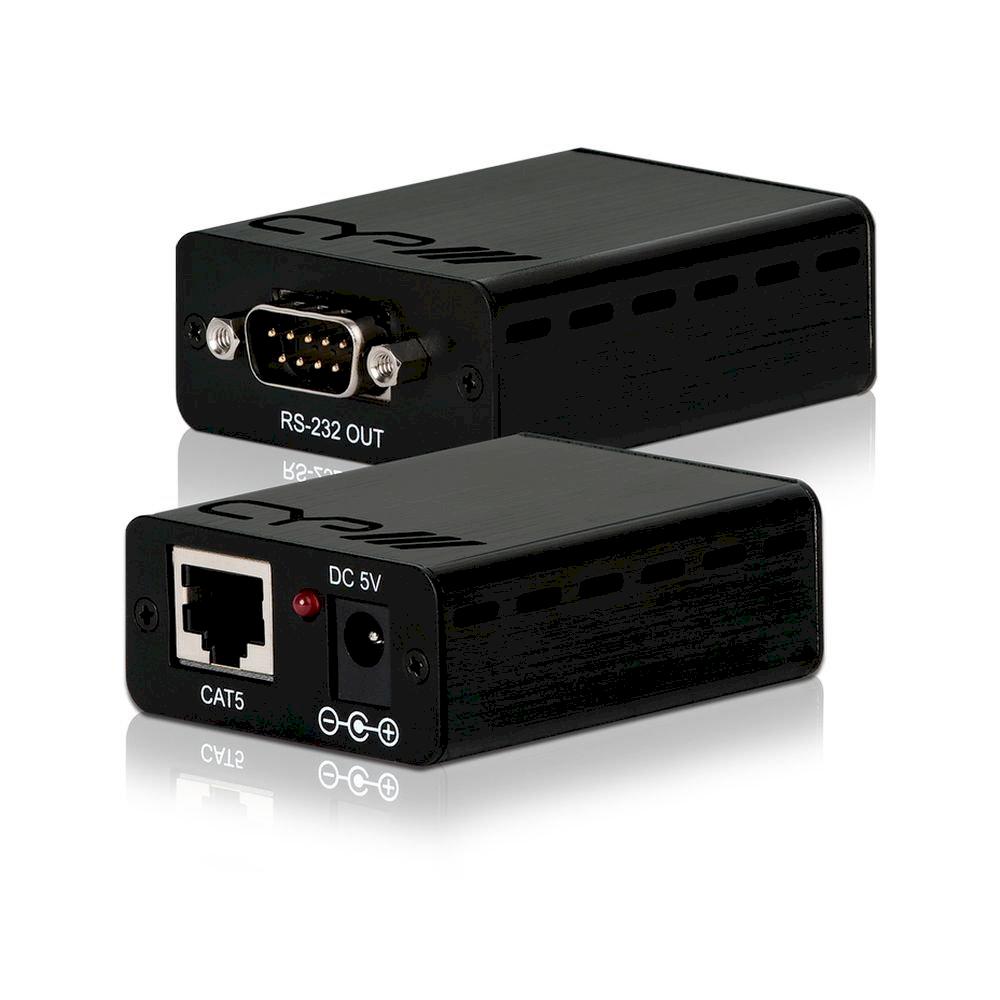

  • RS-232 Control over CAT5e/6 Extender Set
  • RS-232 Control over CAT5e/6 Extender Set

PU-232

Code: PU-232 EAN/UPC: 5060067150587


Brand: CYP


€ 213,95 + VAT
Recommended End User Price
  • € 213,95 + VAT
  • Recommended End User Price
  •


Description:

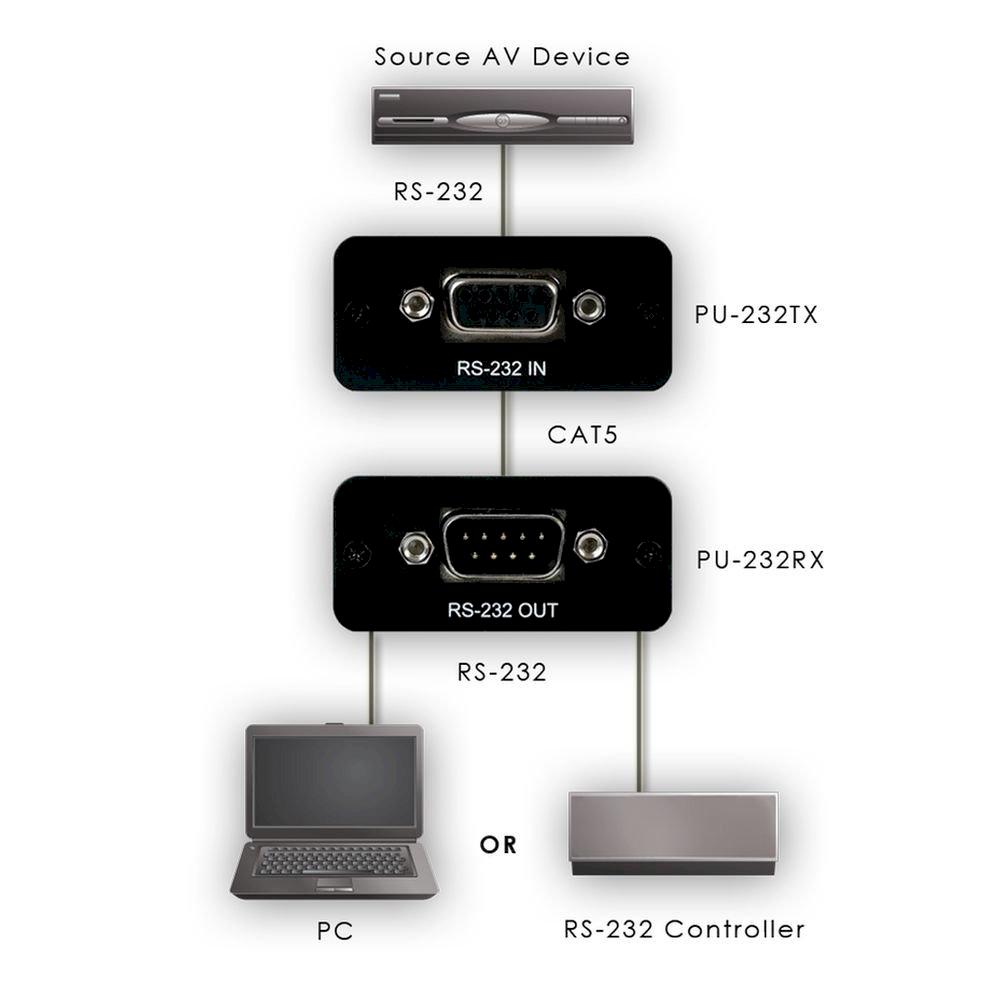

The CAT5/6 RS-232 extender is a hardware-based solution providing control of any RS-232 protocol device. This transmitter and receiver set will extend the control of RS-232 for over 250 meters. The RS-232 extender also provides full duplex transmission and hardware handshake signals, with no need for any set up or configuration.

  • DATA SHEET
  • DOCUMENTS


Overview

  • Tipology:
  • Finished product
  • Product category:
  • Signal Distribution
  • Family:
  • Control Systems
  • Product line:
  • Multi Screen

Technical details

  • Product colour
  • Black
  • LED indicators
  • Yes
  • Type
  • Console transmitter & receiver
  • Maximum transfer distance
  • 250 m
  • Housing material
  • Aluminium
  • Cable types supported
  • Cat5, Cat6

Weight & dimensions

  • Weight
  • 130 g
  • Depth
  • 70 mm
  • Height
  • 25 mm
  • Width
  • 50 mm
  • Package weight
  • 380 g

Ports & interfaces

  • RS-232 ports
  • 2
  • DC-in jack
  • Yes
  • RJ-45 ports quantity
  • 2

Power

  • Output voltage
  • 5 V
  • Power source type
  • AC
  • Output current
  • 1,2 A

Operational conditions

  • Operating temperature (T-T)
  • 0 - 40 °C

Packaging content

  • AC adapter included
  • Yes
  • Manual
  • Yes
