HLG0314-4K-HDBITT
Code:
HLG0314-4K-HDBITT
€ 999,00 + VAT
Recommended End User Price
- € 999,00 + VAT
- Recommended End User Price
Description:

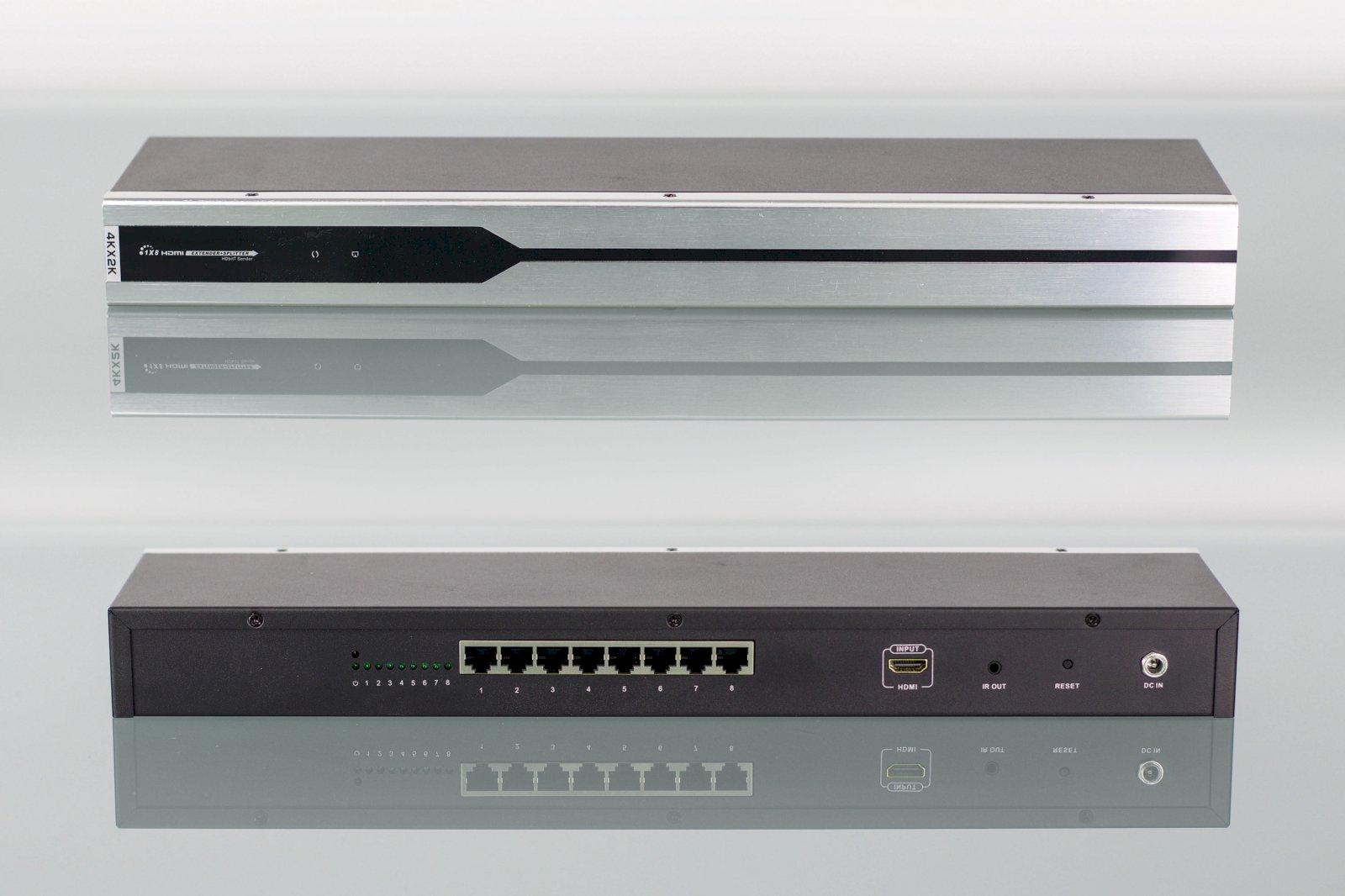

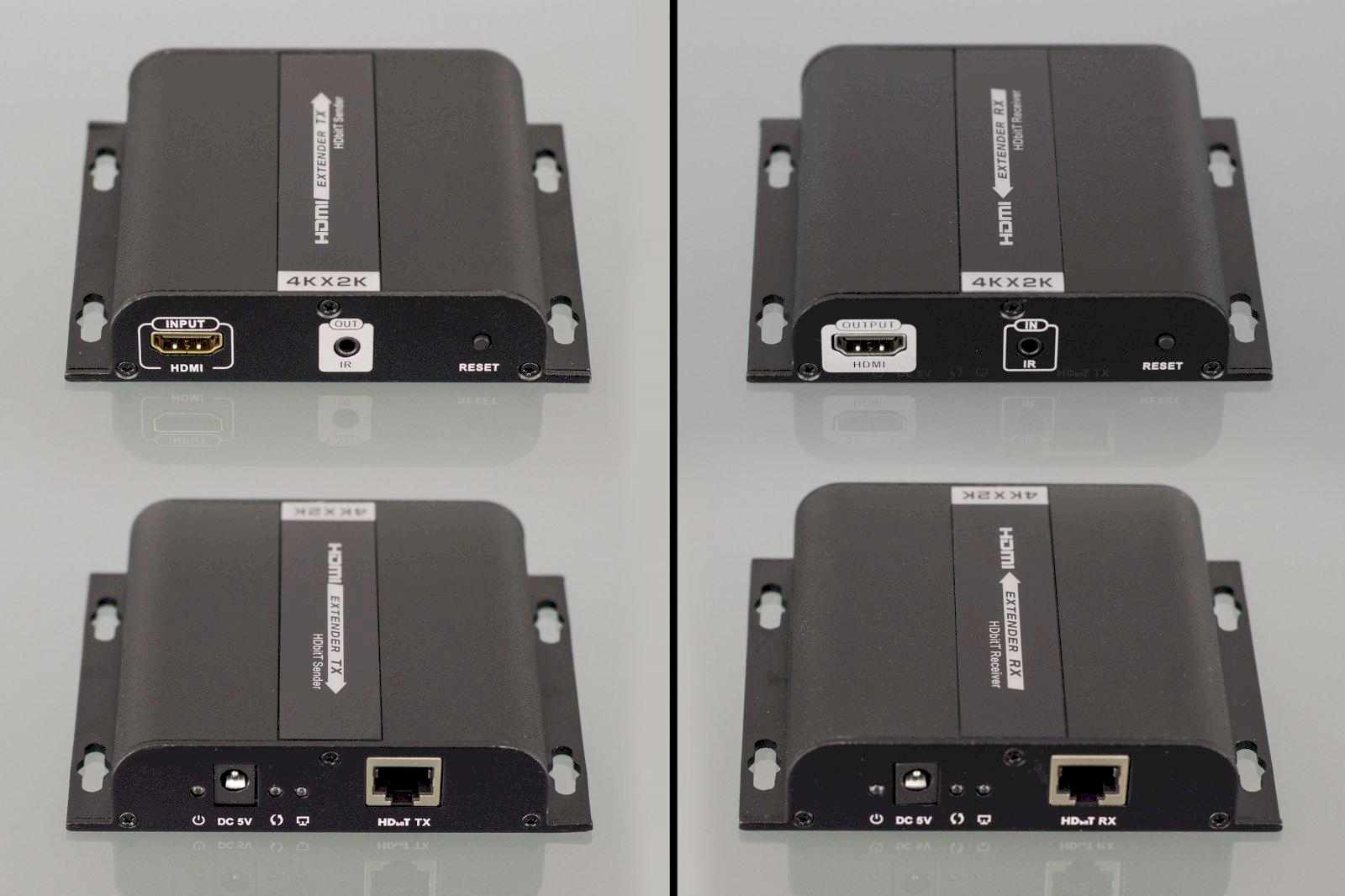

This product combines the extender and splitter function to split 1 HDMI signal to 4 identical HDMI signals via network cable and it is used as a sender to work with 4 receivers to transmit these 4 HDMI signals up to 120meters.

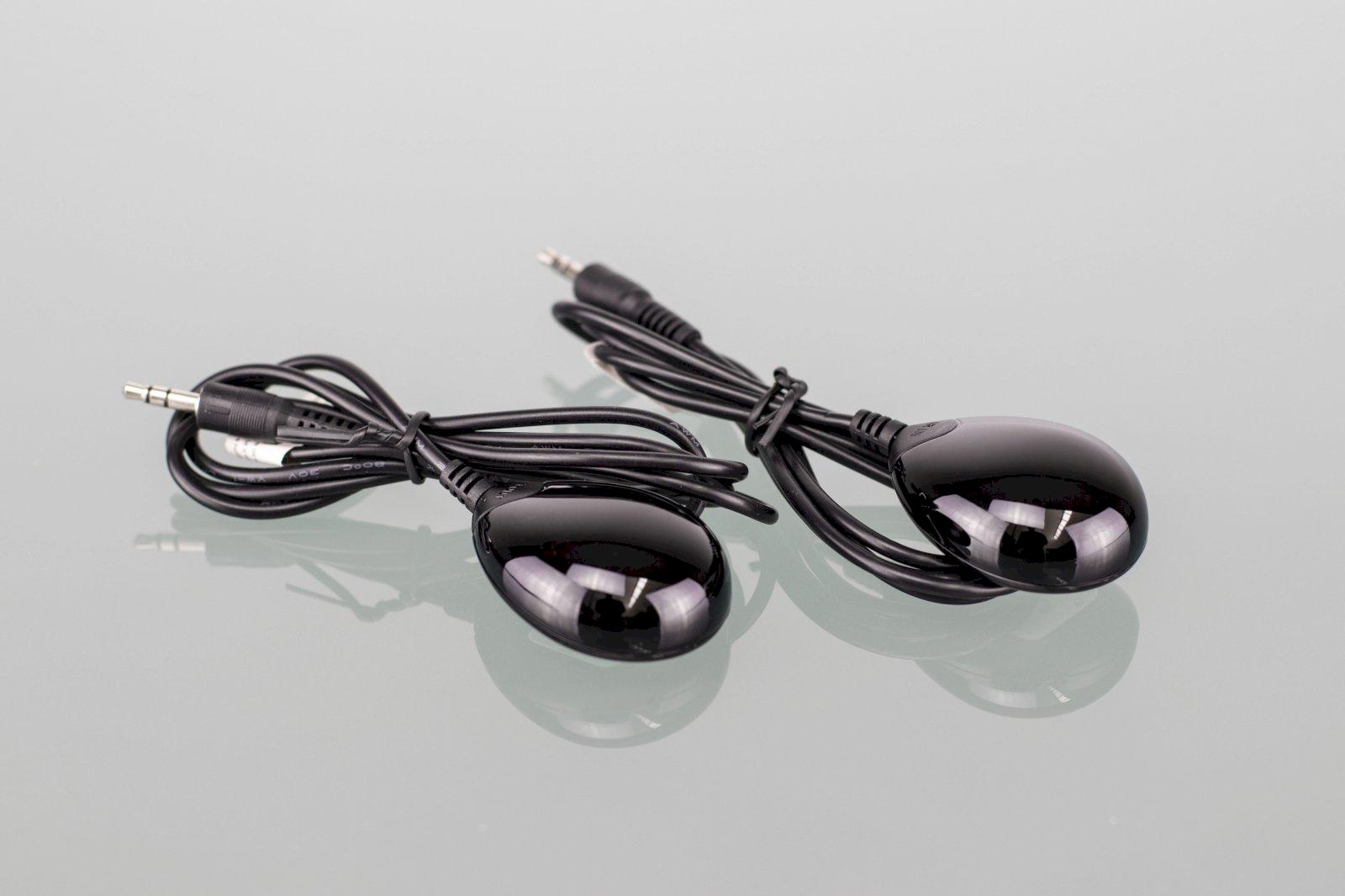

With the IR signal transmission to control the source device operation in long distance, it is widely applied in HD audio visual display room, exhibition center and digital monitoring system.
- DATA SHEET
- DOCUMENTS
Overview
- Tipology:
- Accessory
- Product category:
- Signal Distribution
- Family:
- Extender
- Product line:
- HDbitT
Features
- Product colour
- Blue, Silver
- Type
- AV transmitter & receiver
- Cable types supported
- Cat6
- Maximum transfer distance
- 120 m
- LED indicators
- Power, Status
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p, 2160p
- Supported graphics resolutions
- 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
- Bandwidth
- 10.2 Gbit/s
- HDCP
- Yes
- Maximum resolution
- 3840 x 2160 pixels
- Maximum refresh rate
- 60 Hz
- Plug and Play
- Yes
- Display Data Channel (DDC) input
- 5 V
- Audio system
- stereo
- HDCP pass-through
- Yes
- Resolution
- 3840 x 2160 pixels
- Video compression formats
- H.264
- Frequency range
- 0.2 - 0.6 GHz
Packaging data
- Package type
- Box
Weight & dimensions
- Weight
- 1 kg
- Depth
- 98 mm
- Height
- 44,4 mm
- Width
- 288 mm

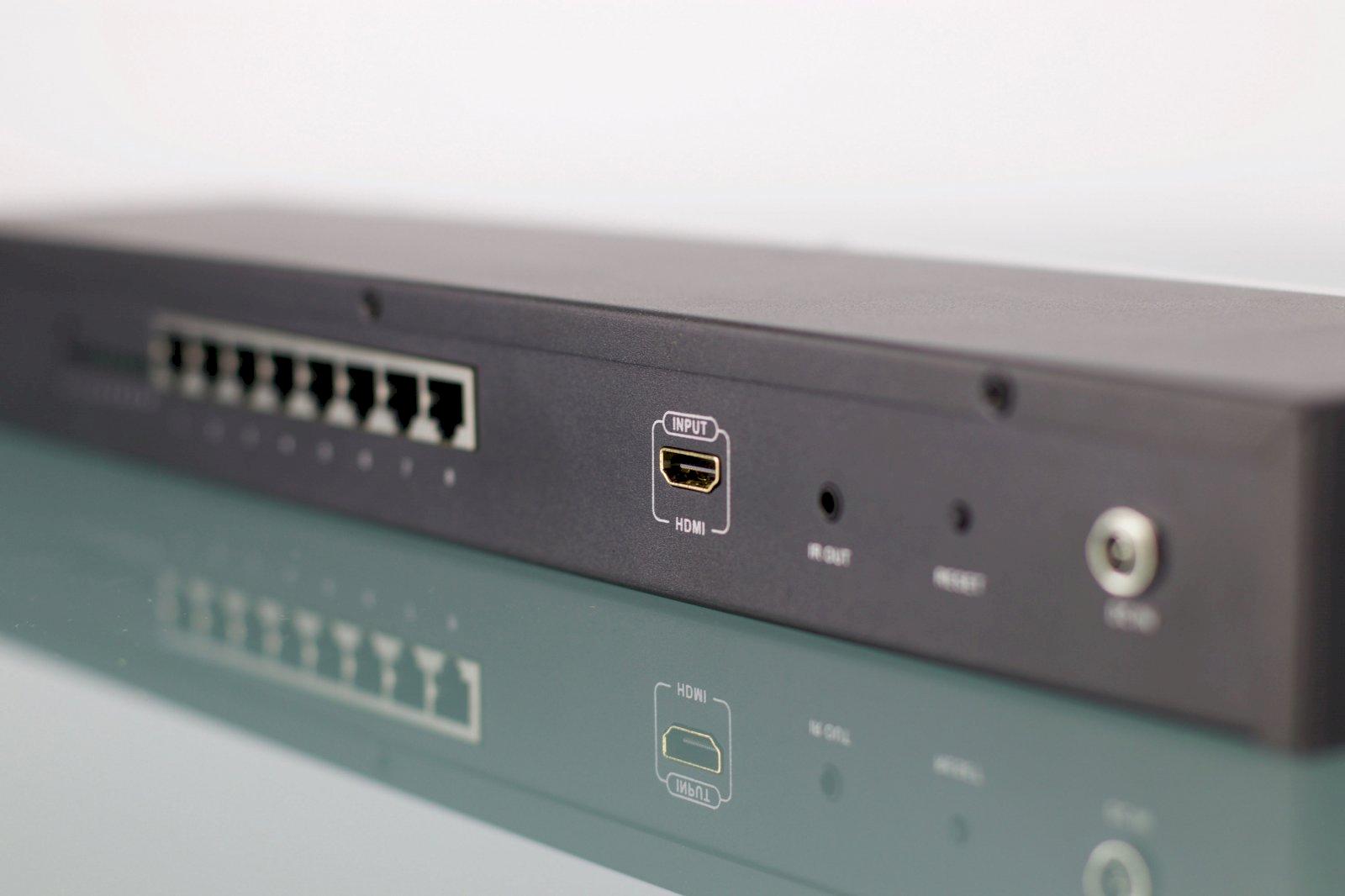

Ports & interfaces
- Connectivity technology
- Wired
- DC-in jack
- Yes
- HDMI in
- 1
- Ethernet LAN
- Yes
- RJ-45 output ports
- 4
Power
- Operating voltage
- 5 V
- Power consumption (typical)
- 10 W
- Output current
- 2 A
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C

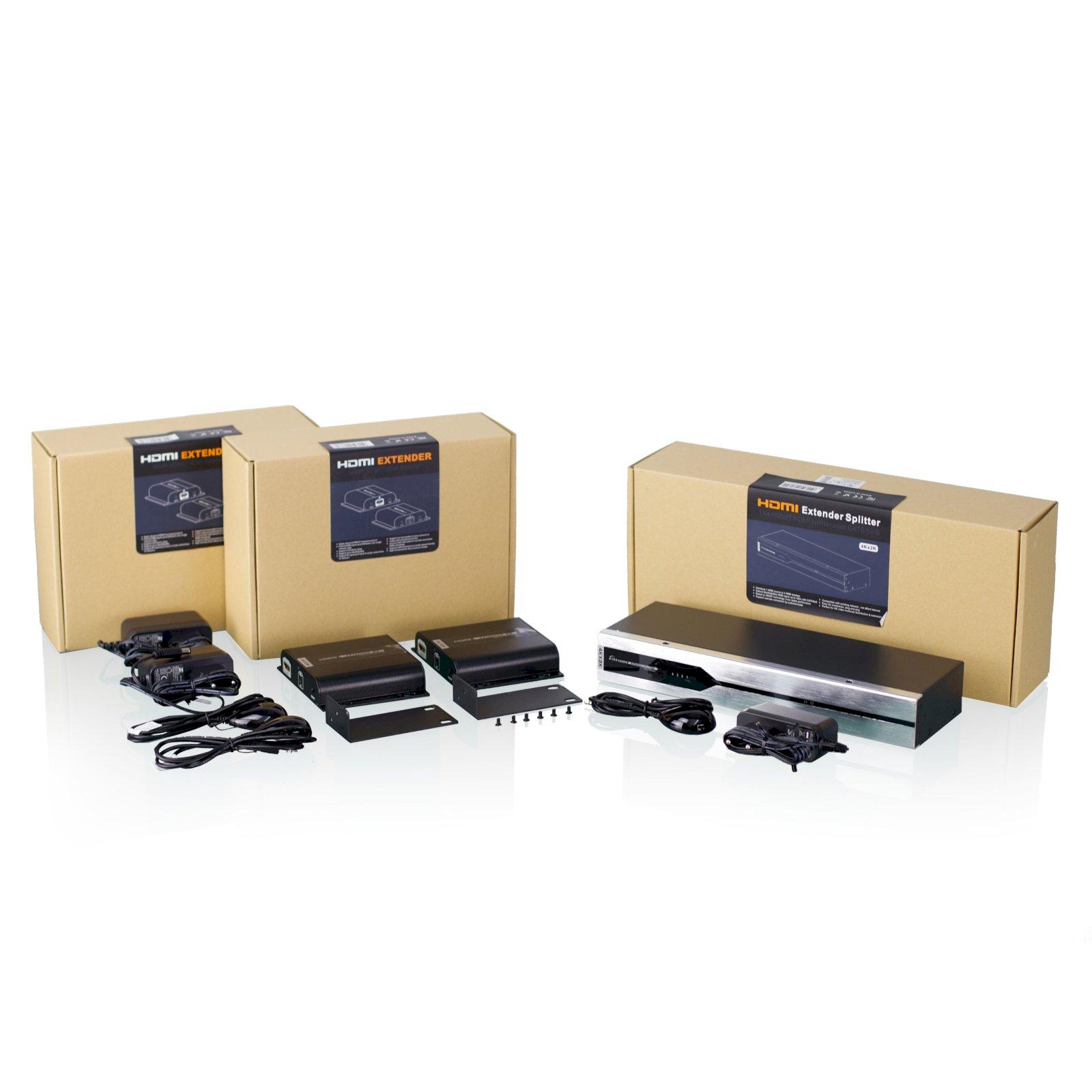

Packaging content
- Remote control included
- Yes
- AC adapter included
- Yes
- Manual
- Yes
